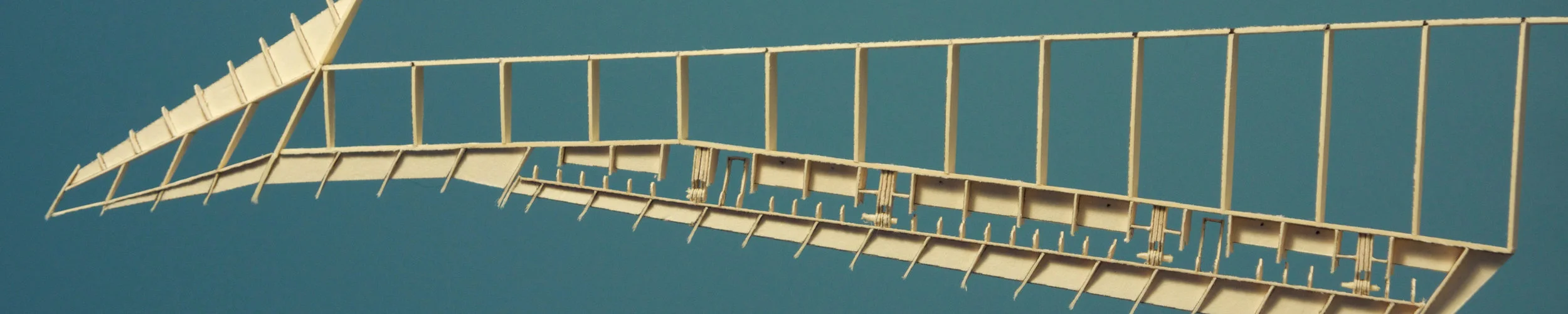

Wings - header.jpg

MODEL 777

WINGS

I love the sleekness of the wings and am fascinated by the way the control surfaces (flaps, slats, ailerons, and spoilers) seamlessly extend and retract. My goal is to make a fully-functional set that operates exactly as the real plane’s would.

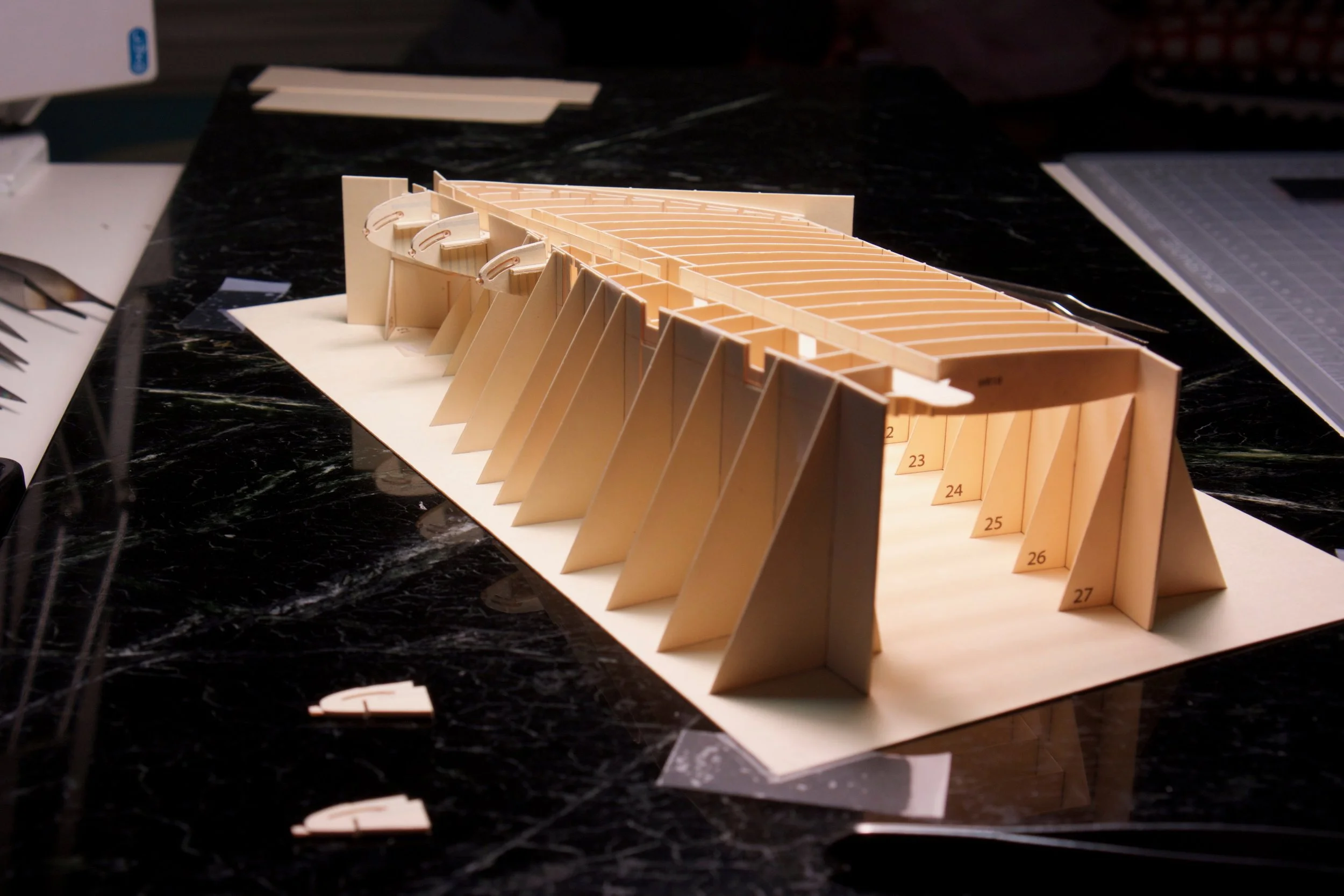

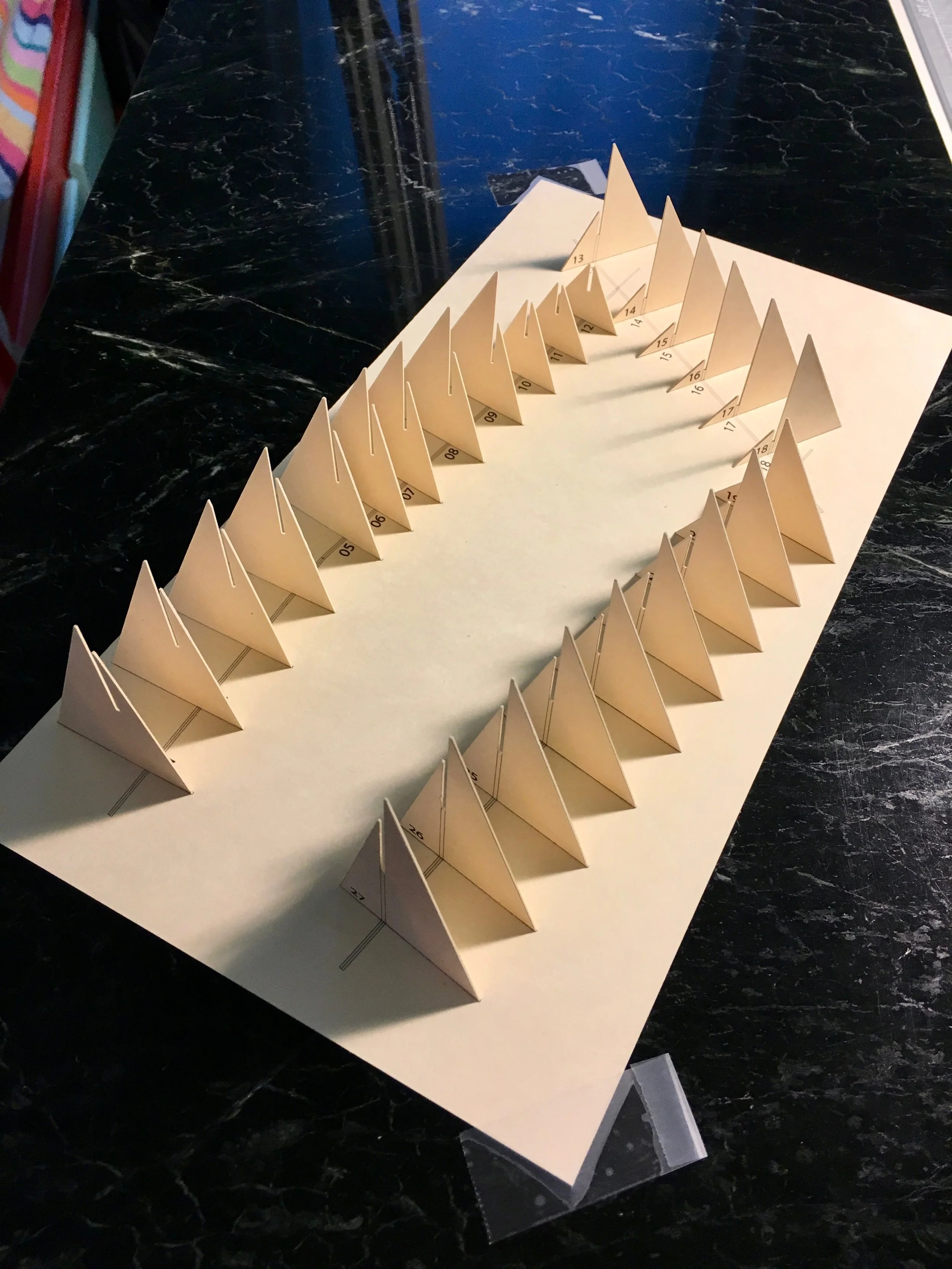

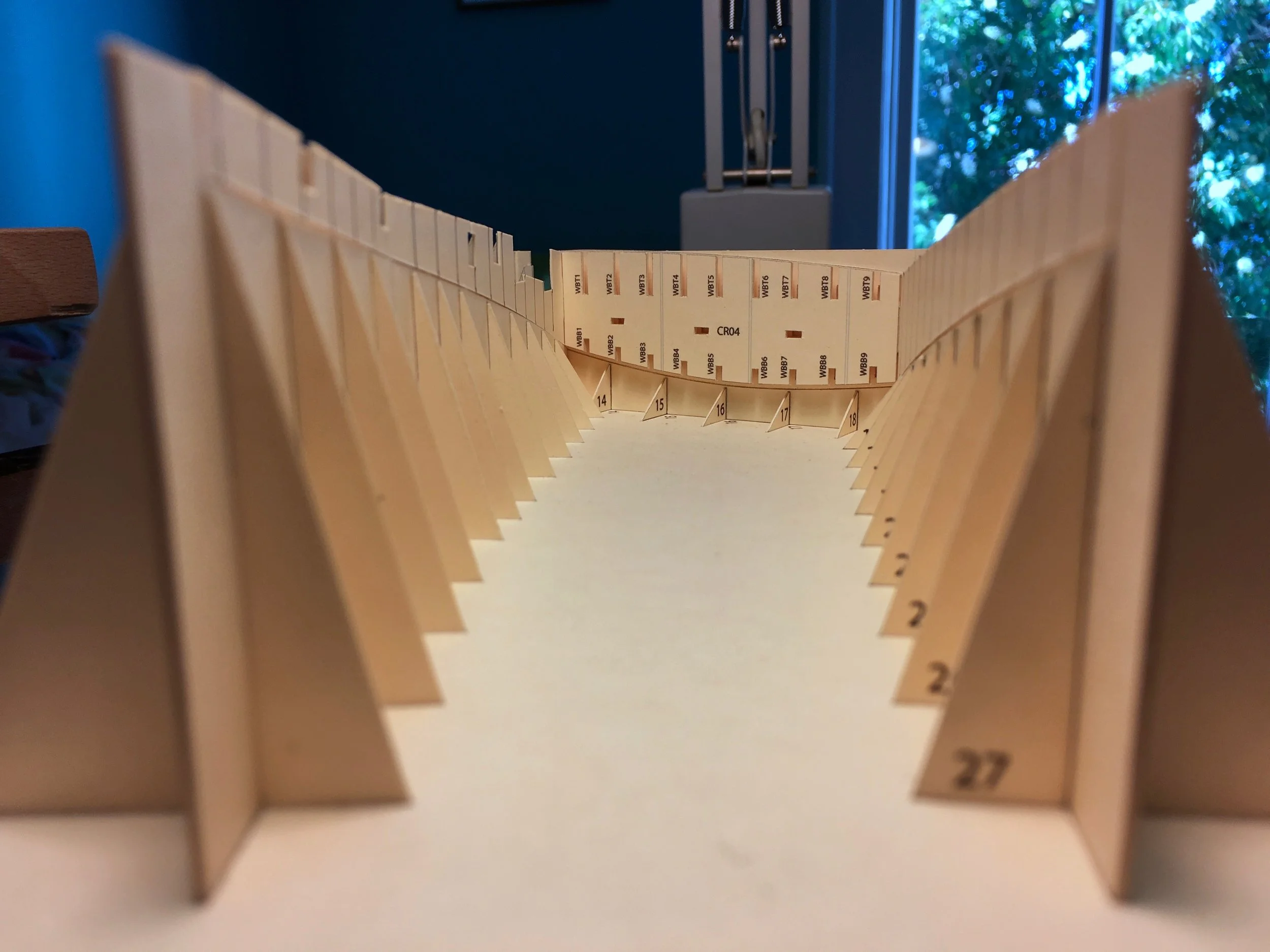

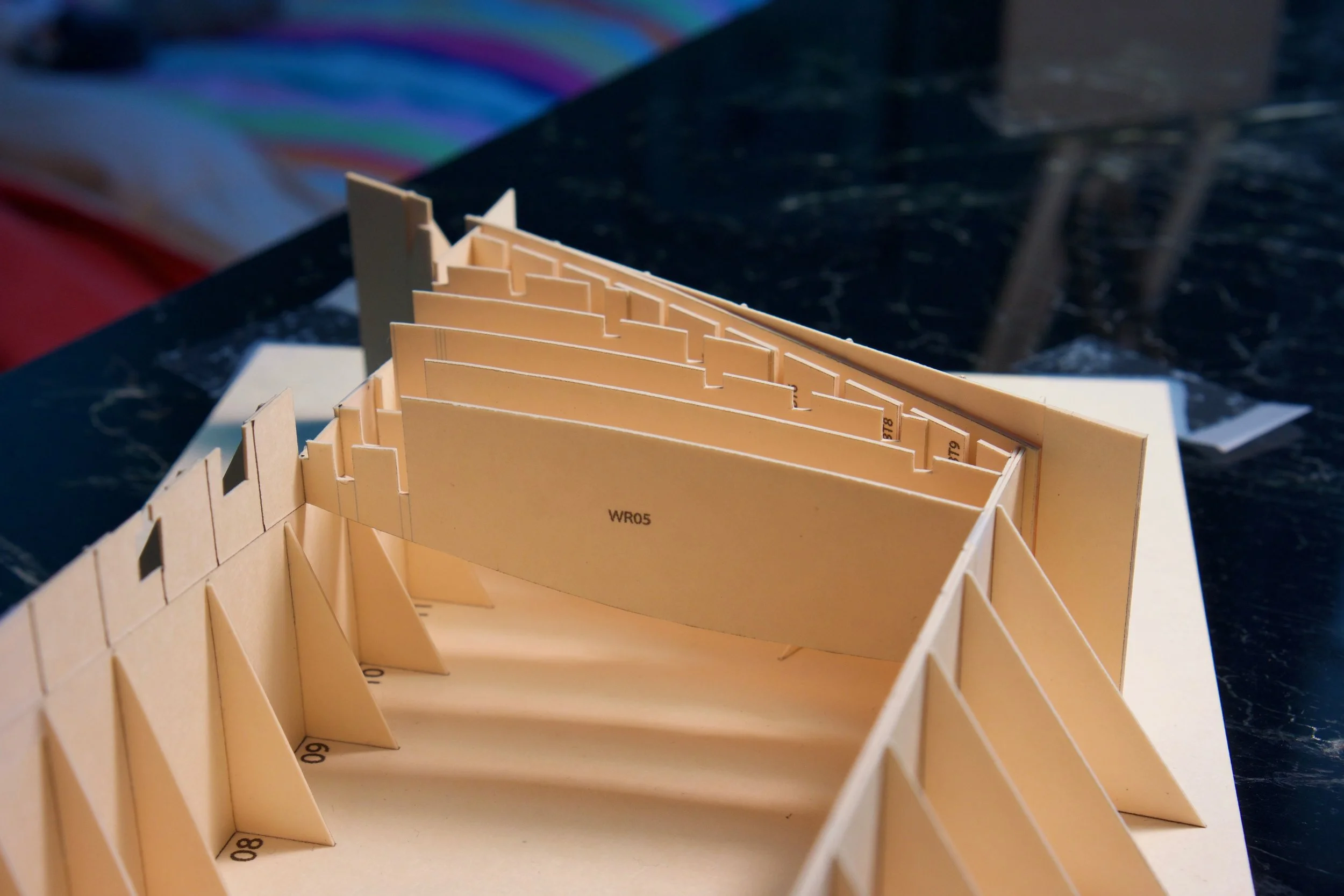

Due to the sheer complexity of this goal, I’ve broken the wings down into various sub-systems and have been creating test pieces for each in order to verify the integrity of my designs. I’ve also had to come up with new production processes to enable the level of precision that will be required in the final product. This includes building a wingbox jig to hold the wing in place during construction, and multiple molds to help me accurately form the paper that will become the outer skin.

The wings remain in progress and will be the single most complex part of the model, with thousands of individual parts.

Air New Zealand
B-16705 Oct 18 2013
[18:59] SQ0318 SIN-LHR
777 wing close-up

WING WIREFRAME

DESIGN

Wings - drawings 2.jpg
Wings - drawings 1.jpg

My wing “wireframe,” which defines the general exterior shape of the top and bottom surfaces of the wing



BUILD

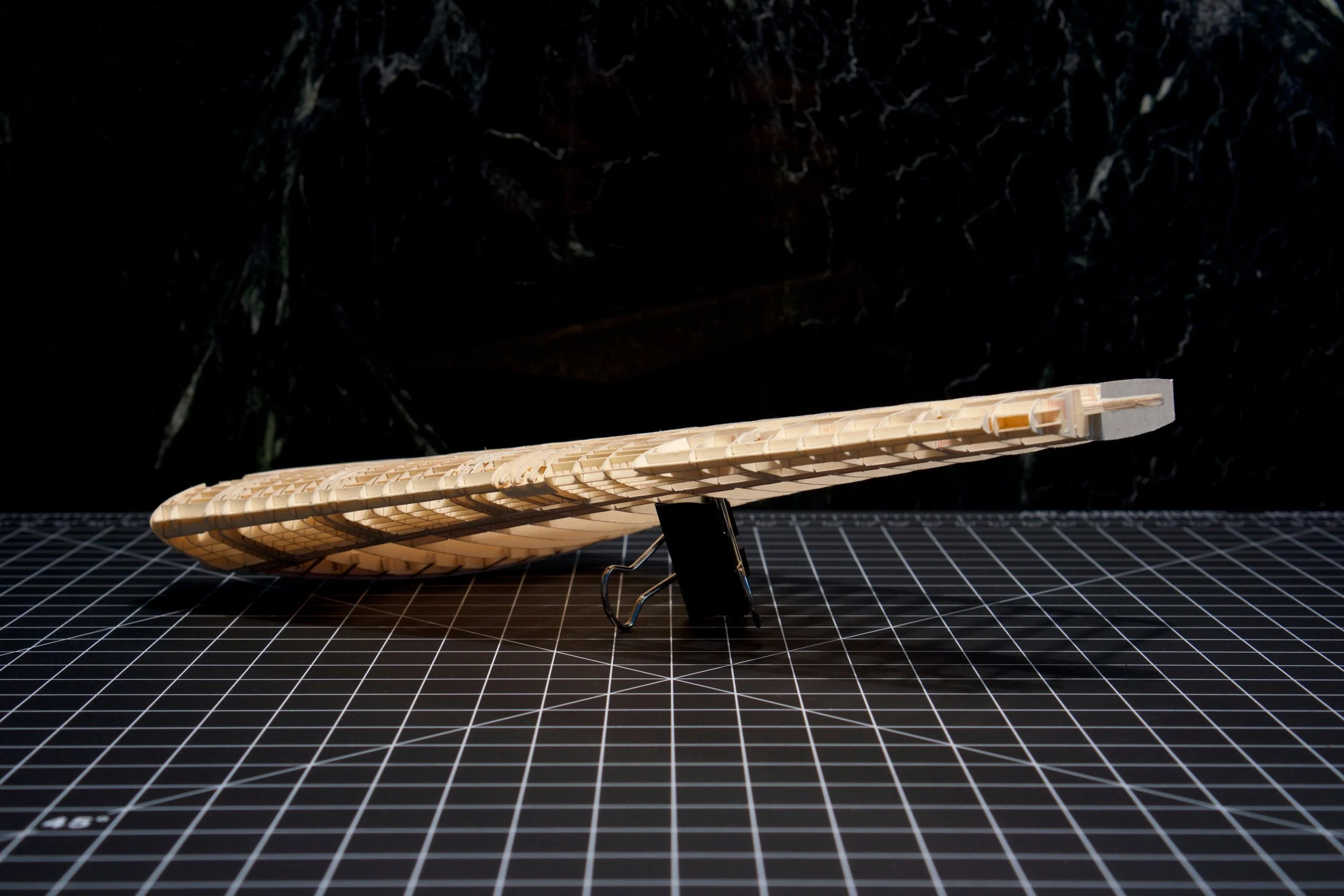

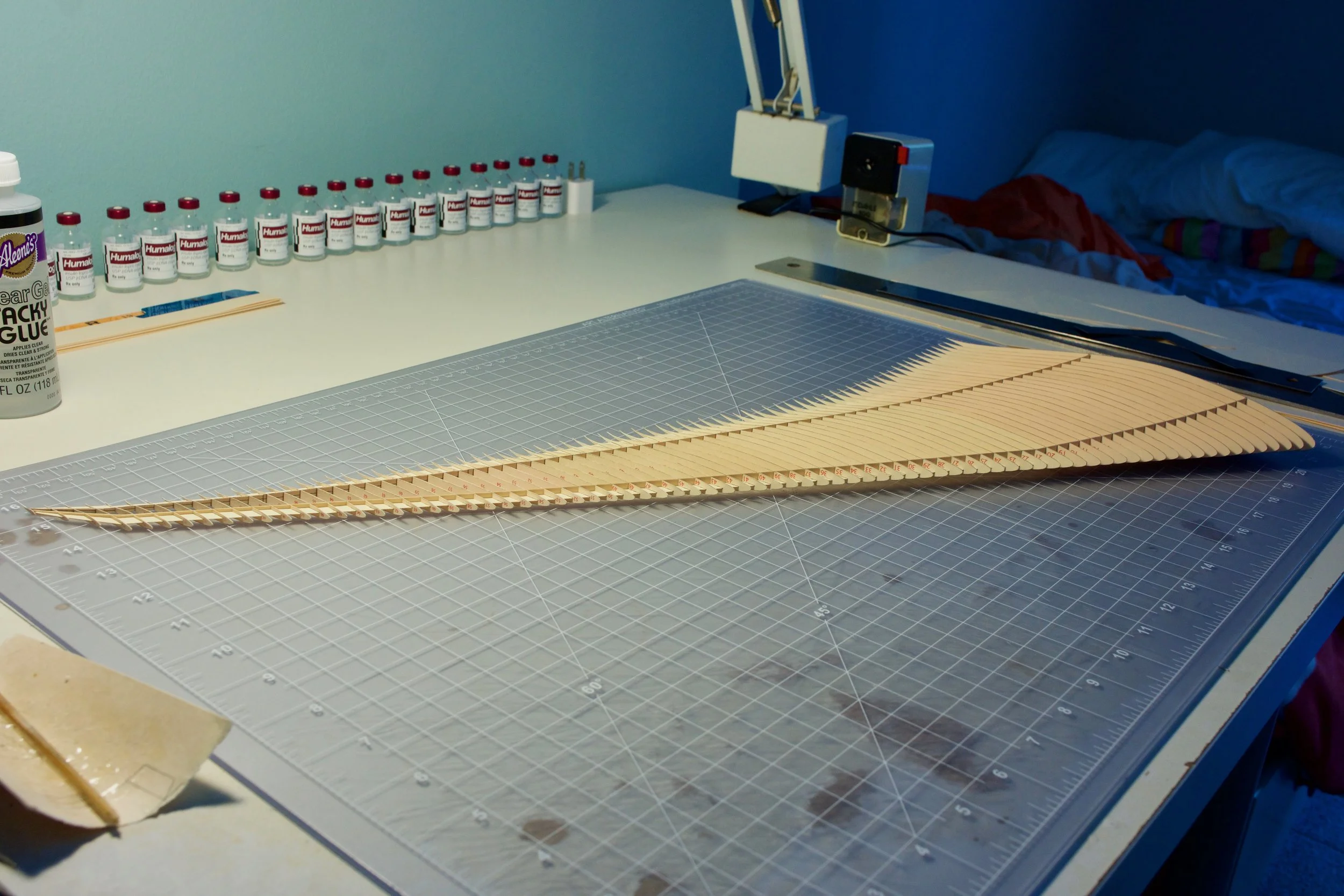

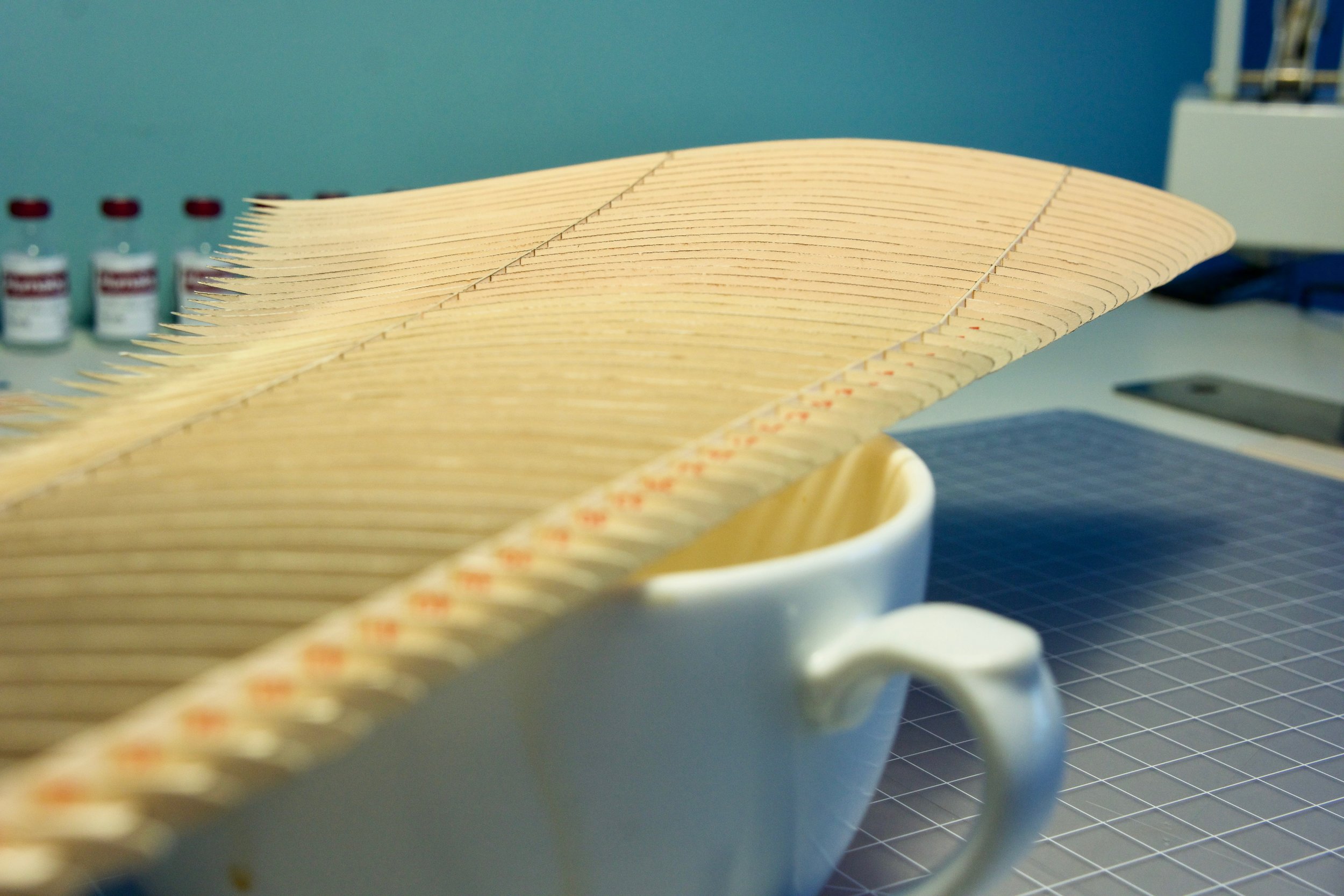

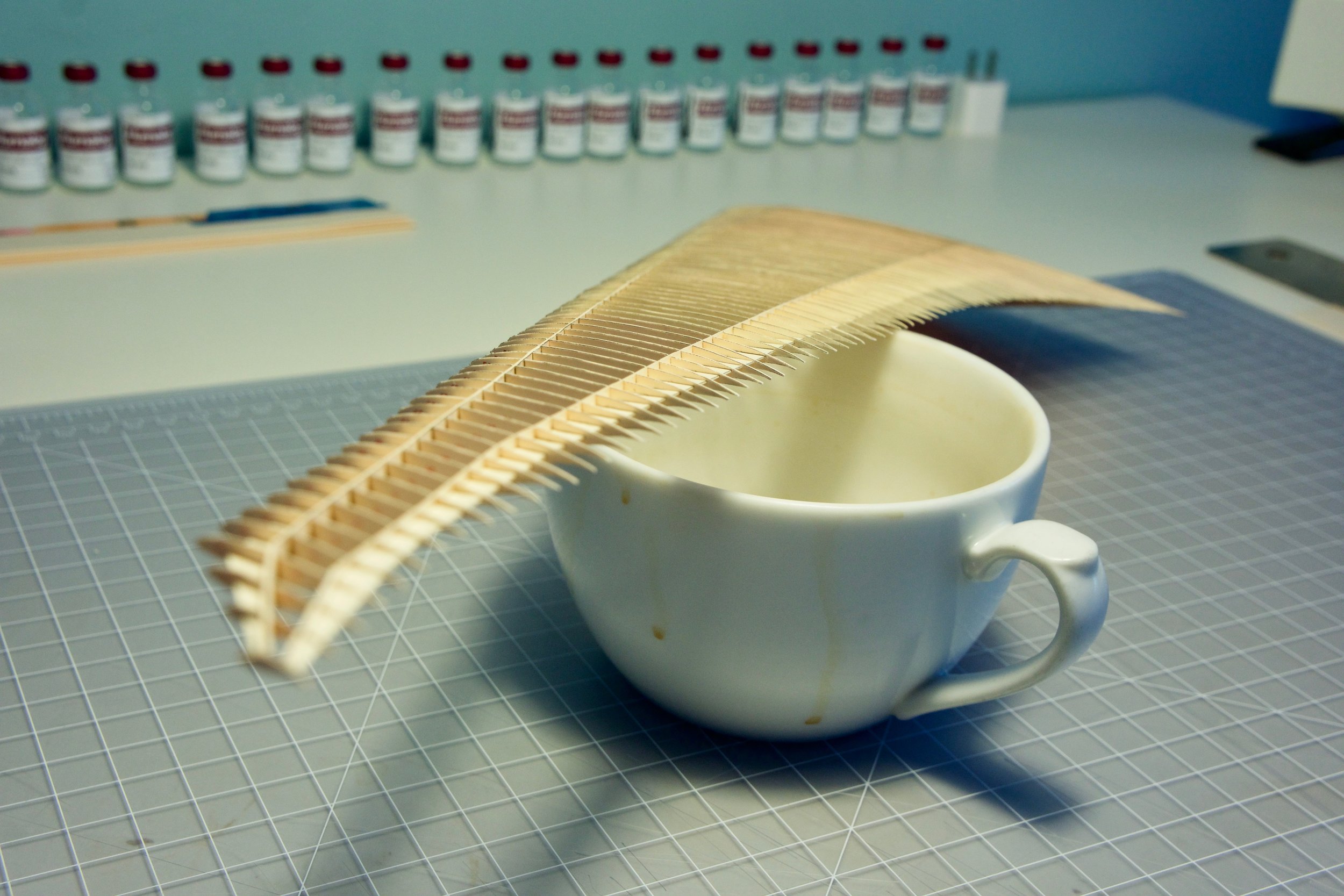

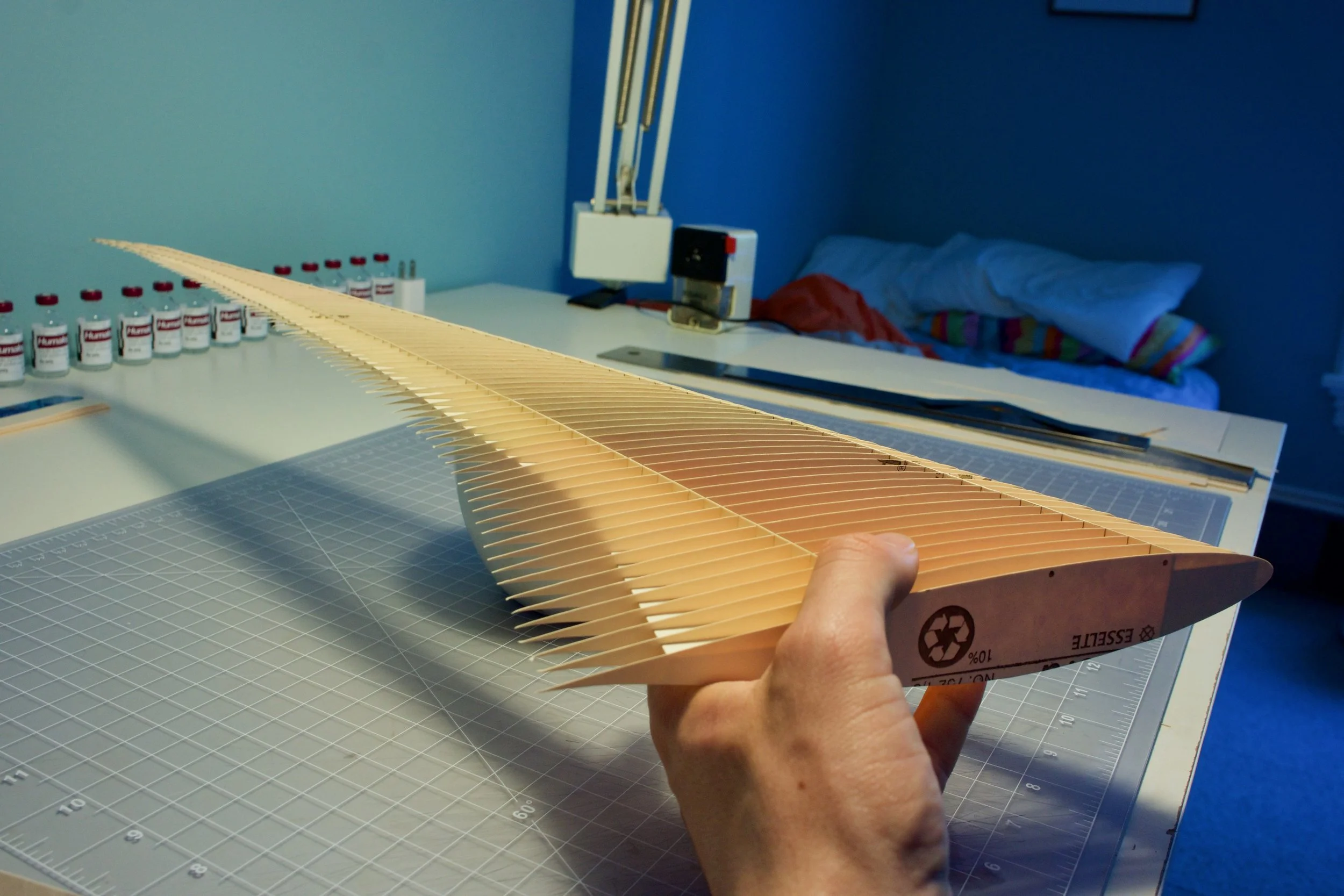

A 3-D test of the wireframe. This shows how big each wing will be once complete.


AILERON

The ailerons are located on the outermost trailing edges of the wings and help steer the plane at low speeds.

5. CK B77F
Cathay Pacific Boeing 777-367ER B-KPZ raked wingtip


AILERON

DESIGN

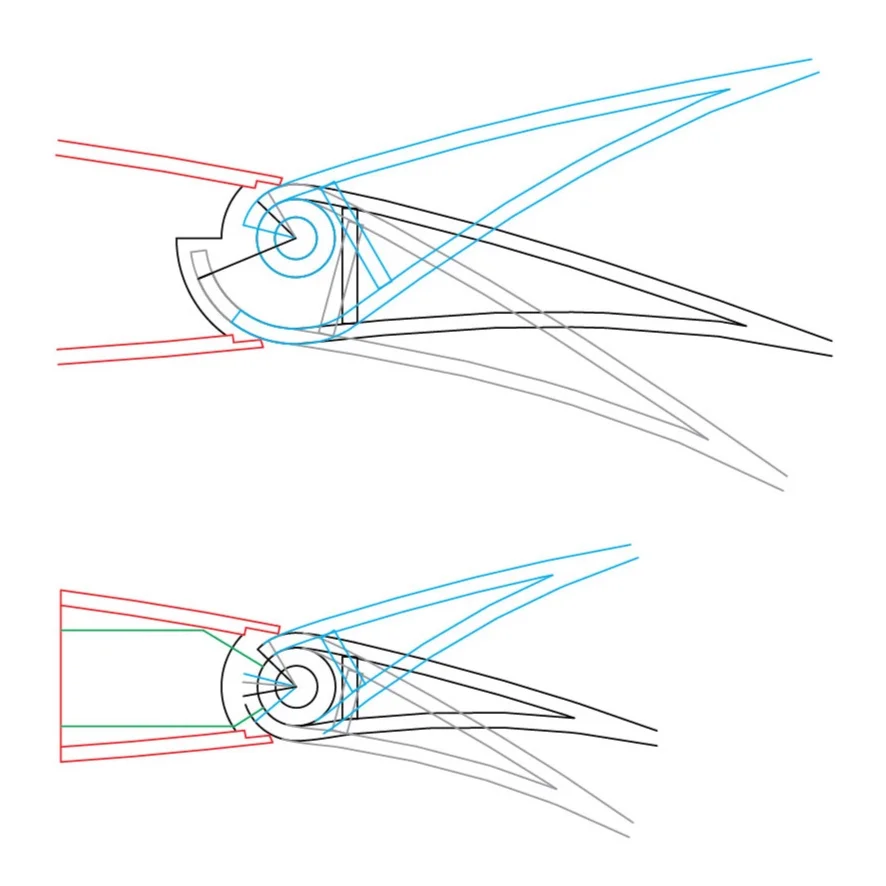

My designs for the aileron

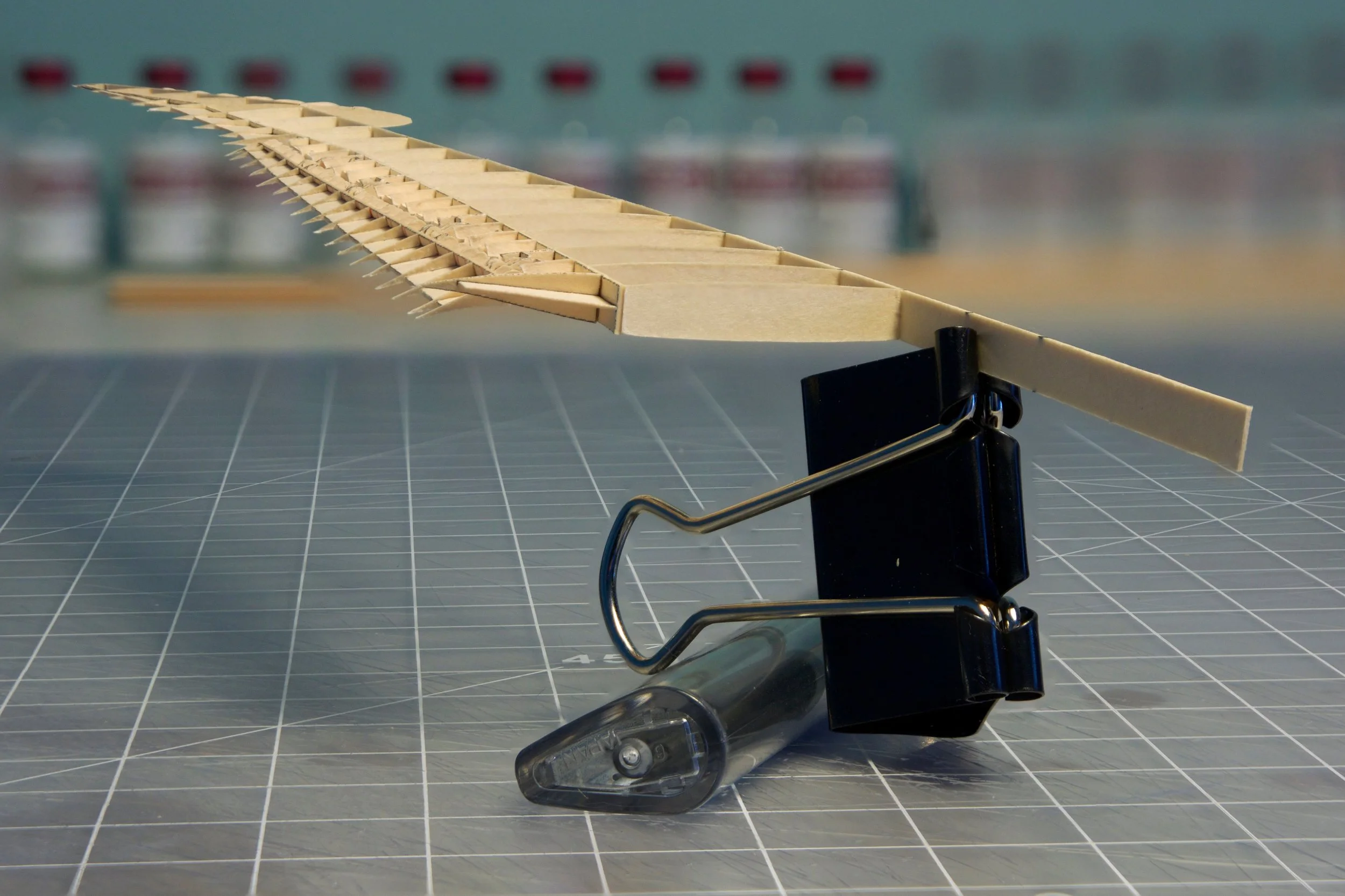

A close-up of the range of motion of the aileron



AILERON

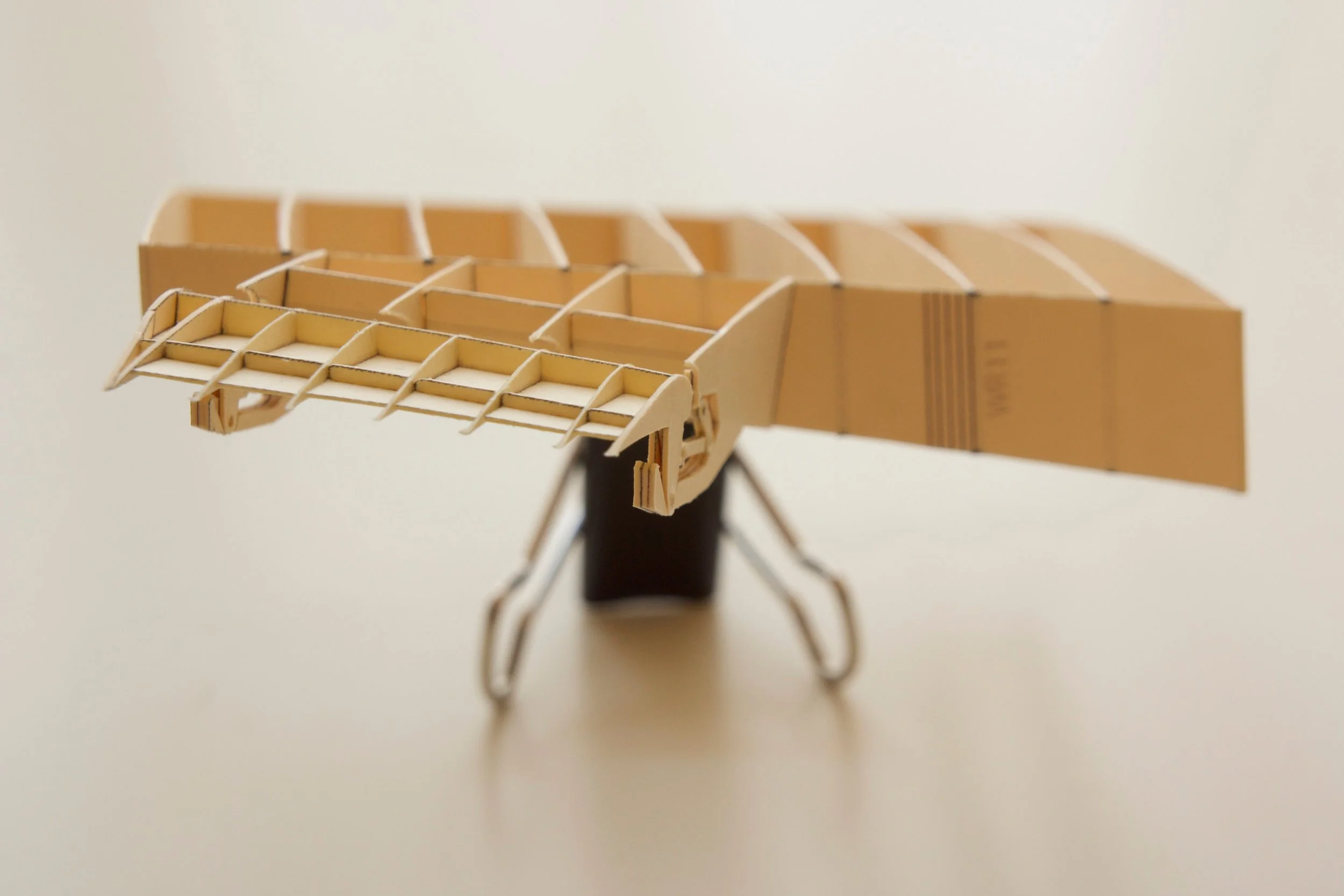

TEST PIECE


FLAPERON

The flaperons are located between the inner and outer flaps on the trailing edge of the wing. As their name suggests, they are both a flap and an aileron, and assist in increasing lift and steering the plane at higher speeds.

Emirates Boeing 777-21H A6-EMD

The small, nearly square flaperon, located between the inboard and outboard flaps



FLAPERON

DESIGN

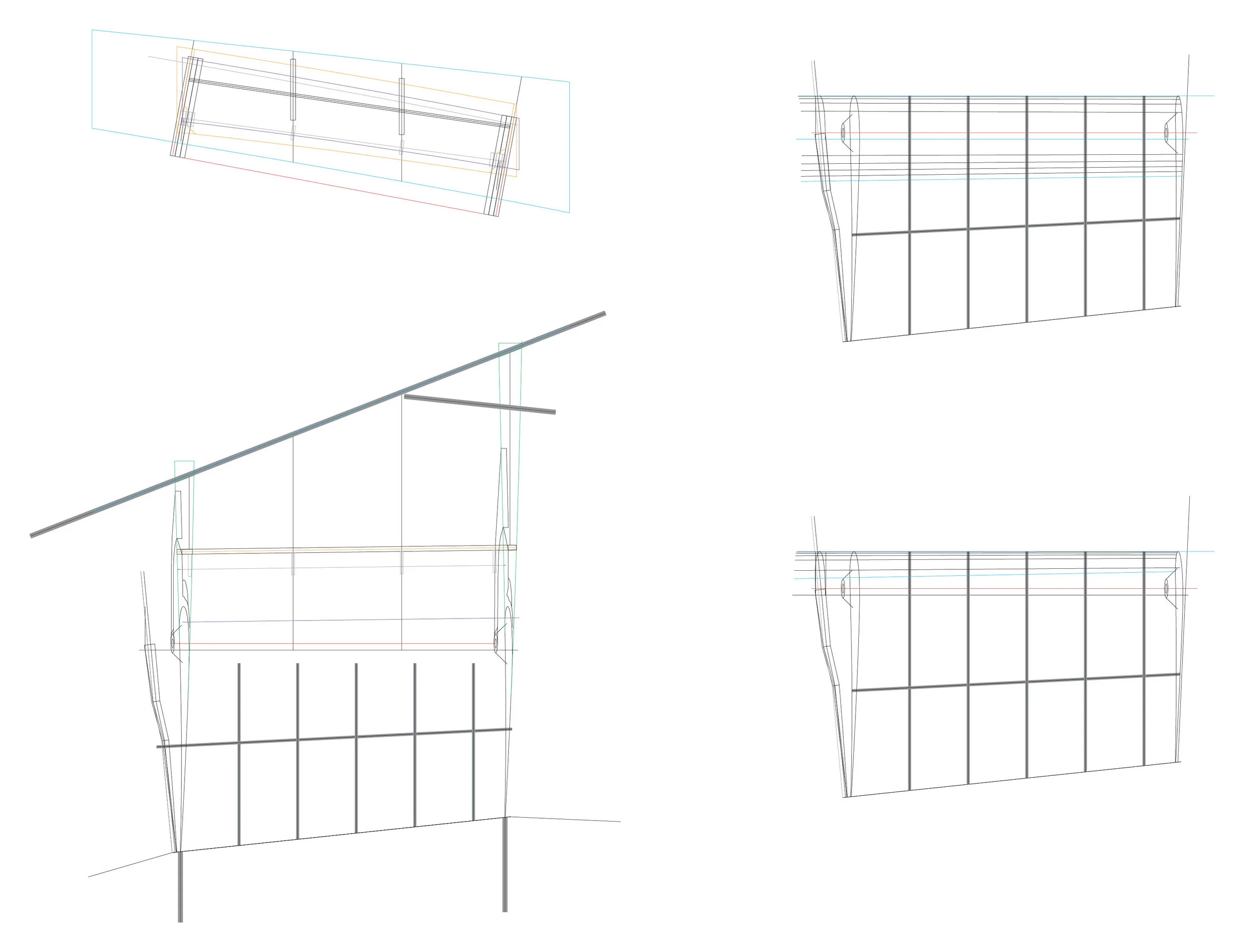

Wings - flaperon - drawings 2.jpg
Wings - flaperon - drawings 1.jpg


FLAPERON

TEST PIECE


SLATS

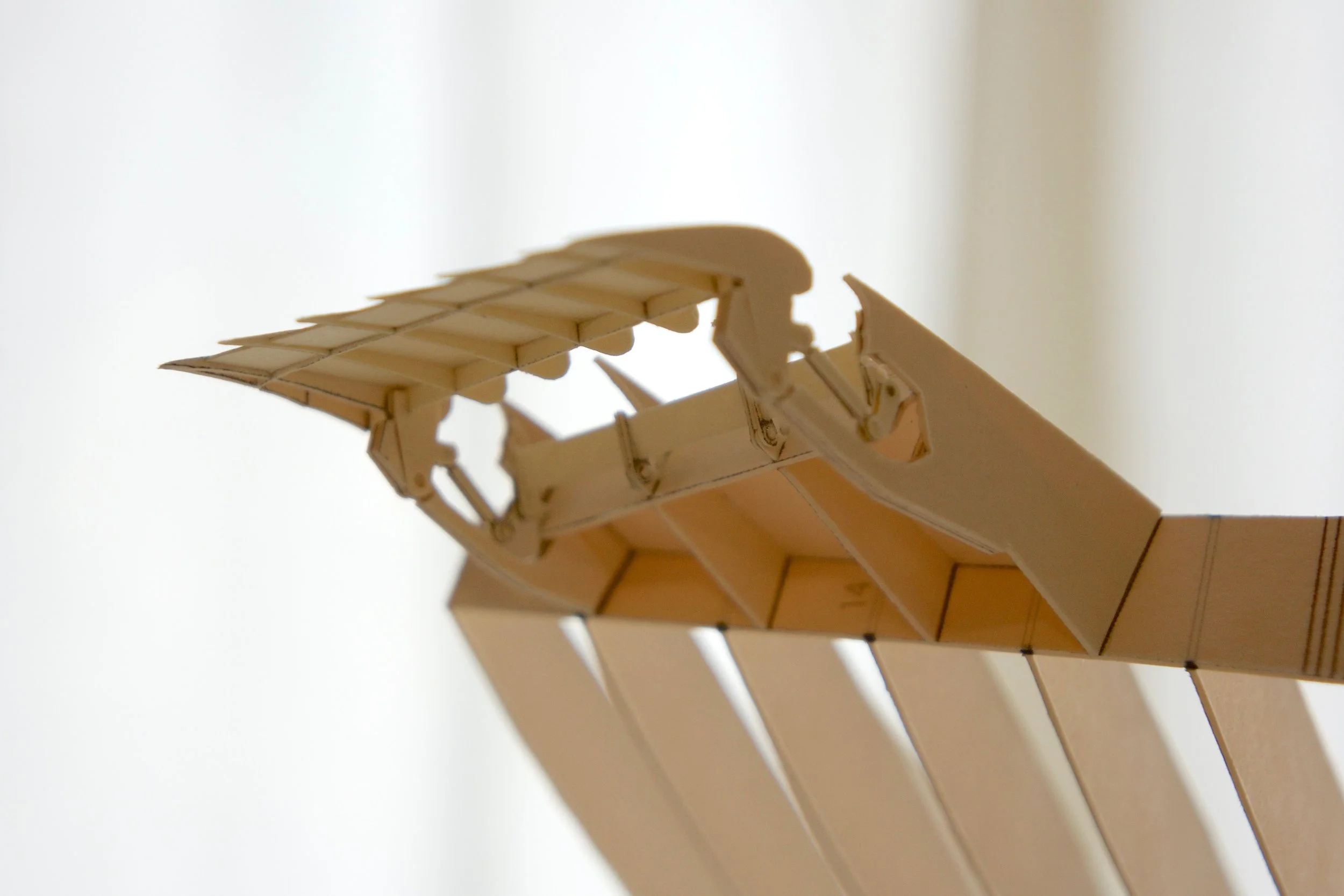

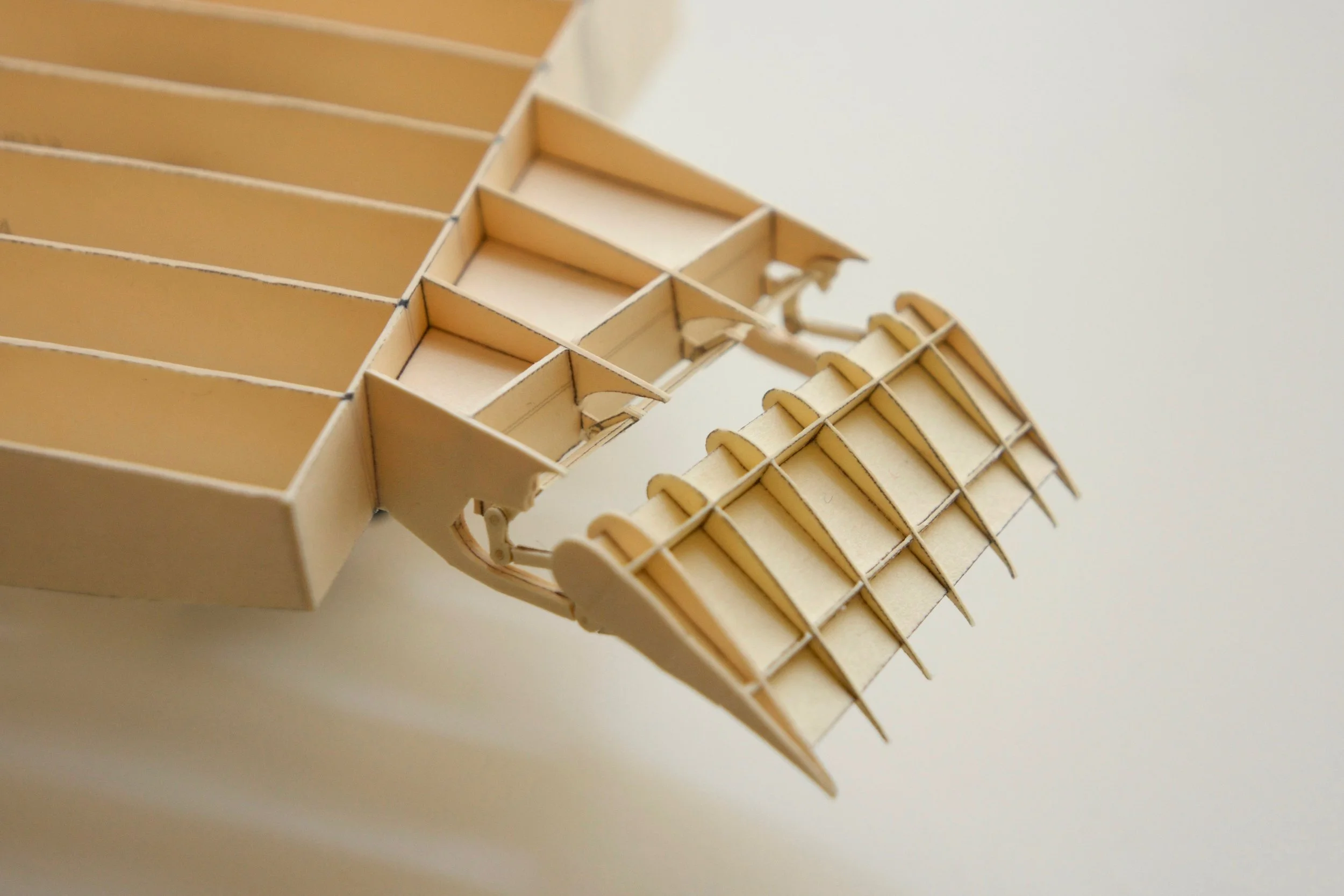

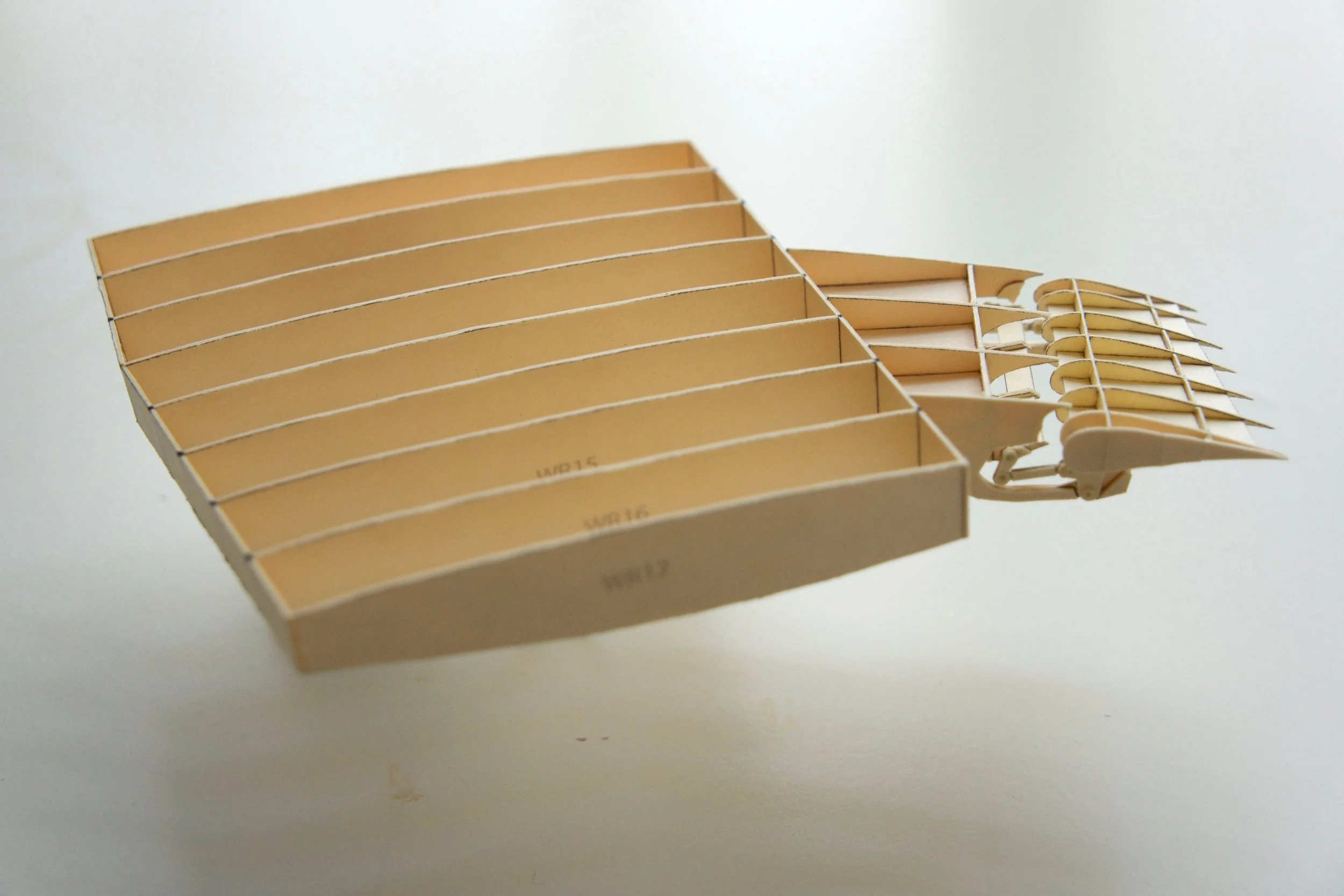

The slats are located along the entire length of the leading edge of the wing, and help produce extra lift for takeoff and landing.

N766AN American Airlines Boeing 777-200 ER

The outboard slats, seen extended from the leading edge of the wing during landing



SLATS

DESIGN

Wings - slats - drawings 1.jpg

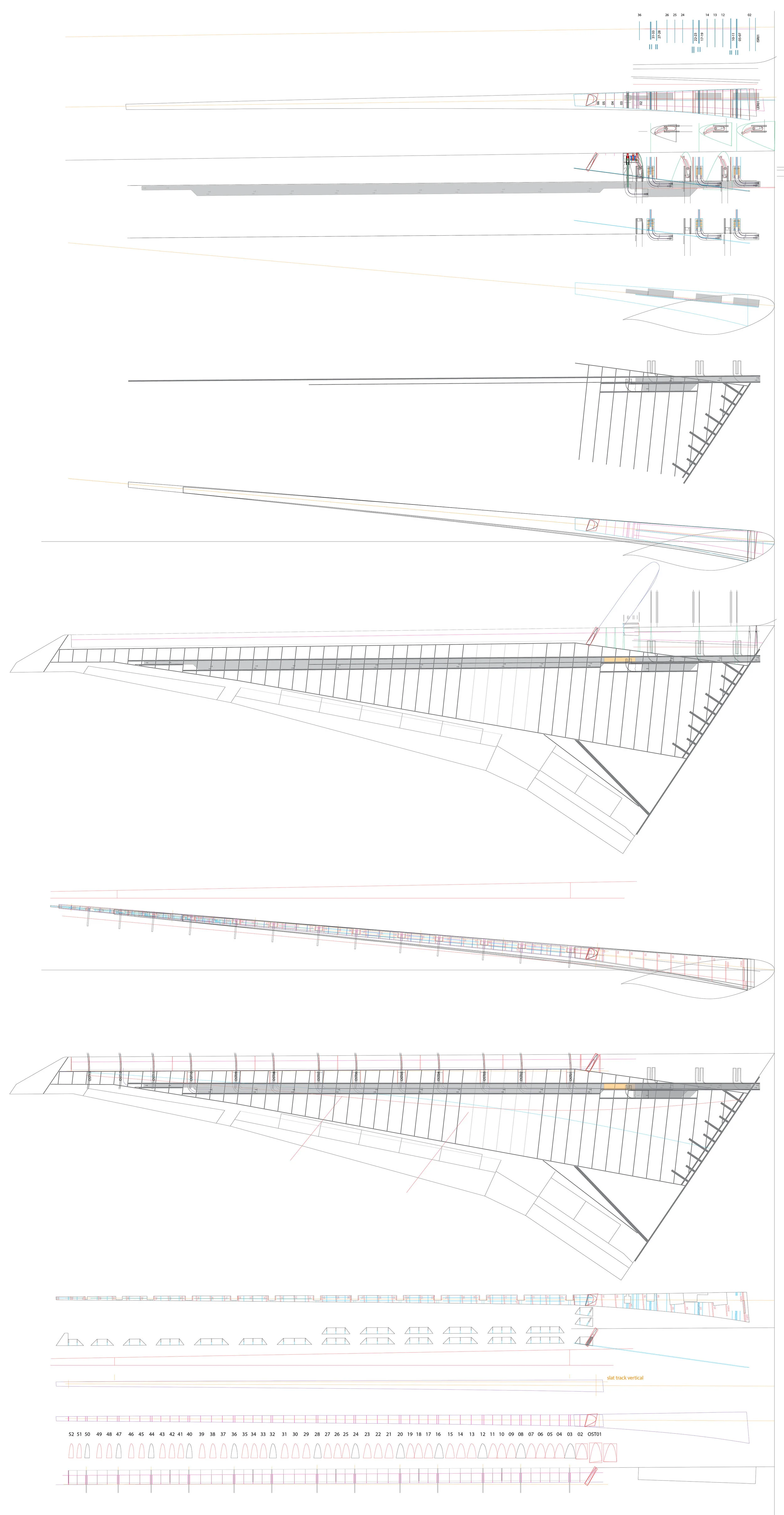

A small section of the immensely complex plans for the slats



SLATS

TEST PIECE


WING-BODY FAIRING

The wing-body fairing smooths the junction of the wings and the fuselage to provide a more aerodynamic shape, and creates enough space in the belly to allow the landing gear to fully retract.

[16:46] SV0119 RUH-LHR
[11:29] BA0139 LHR-BOM

The wing-body fairing, as seen from the front and rear



WING-BODY FAIRING

DESIGN

Wings - body fairing - drawings 2.jpg
Wings - body fairing - drawings 1.jpg


WING-BODY FAIRING

TEST PIECE

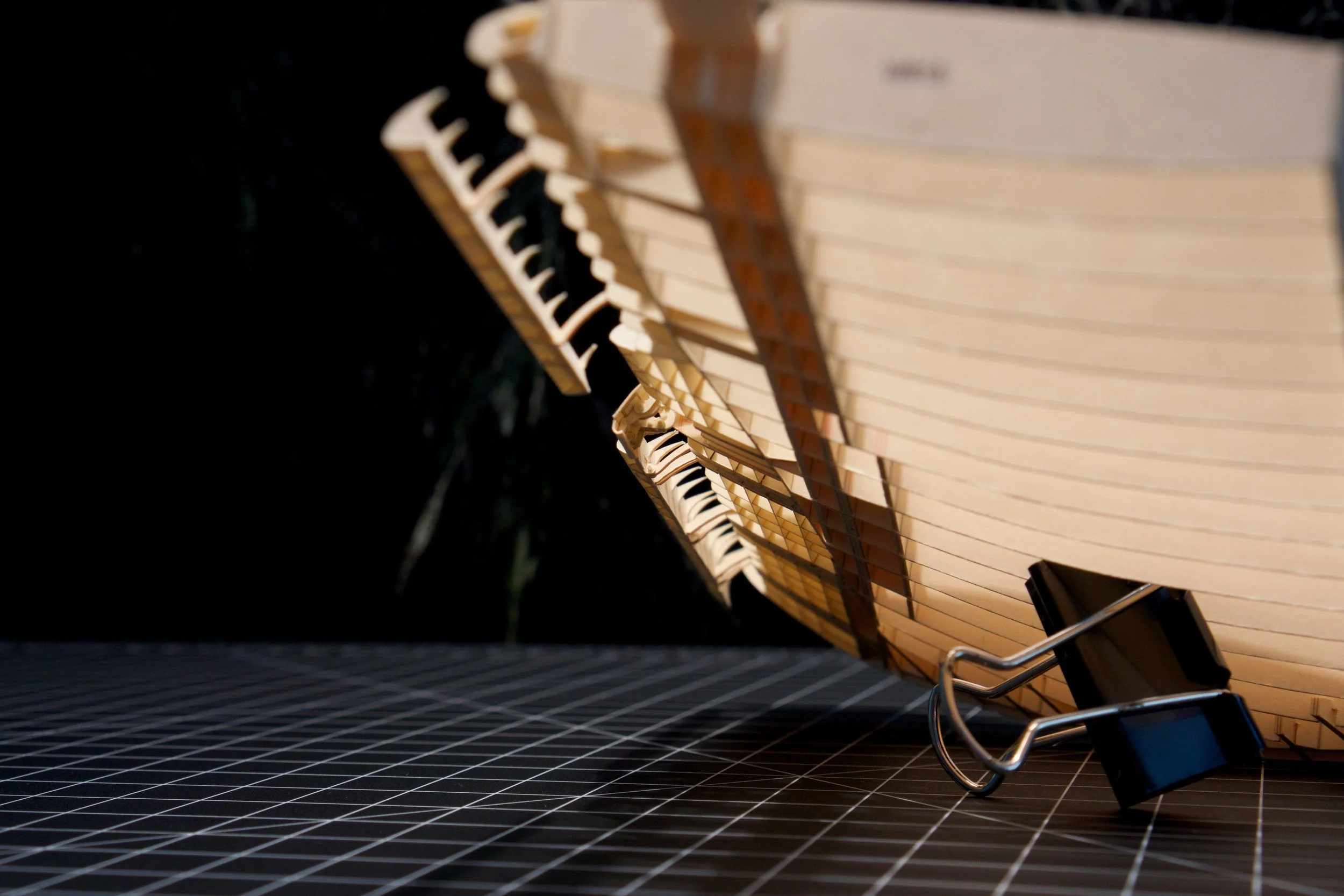

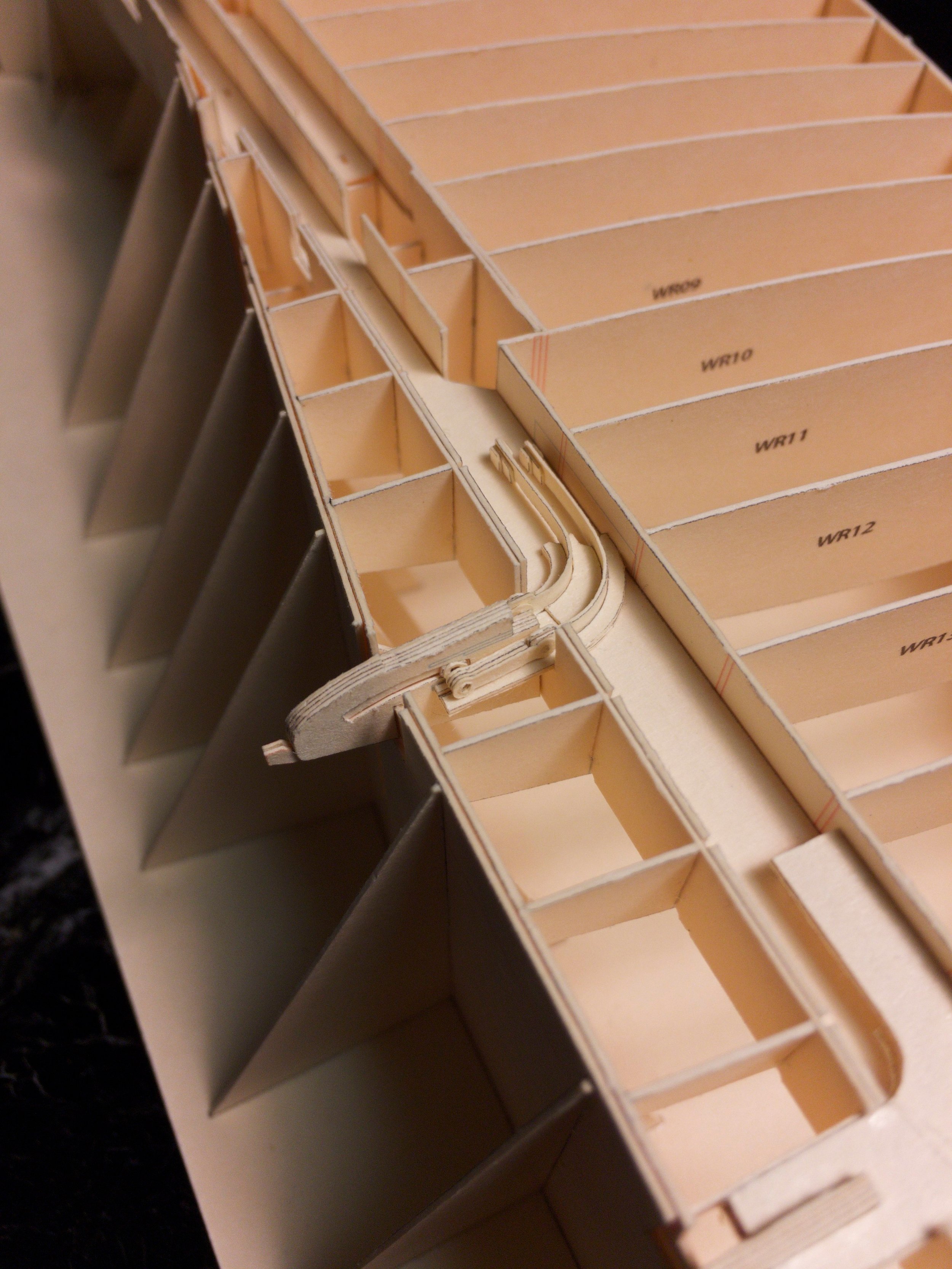

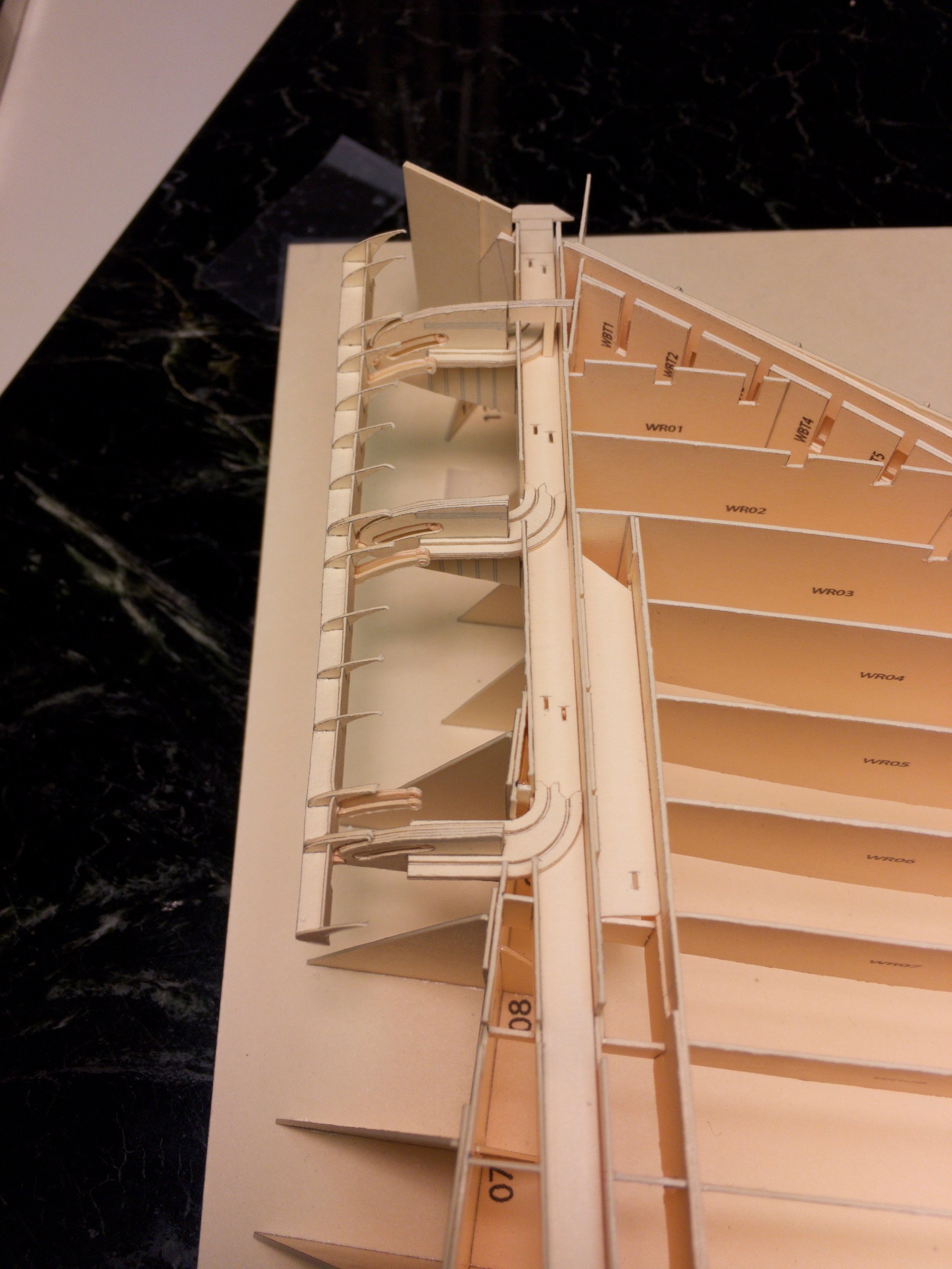

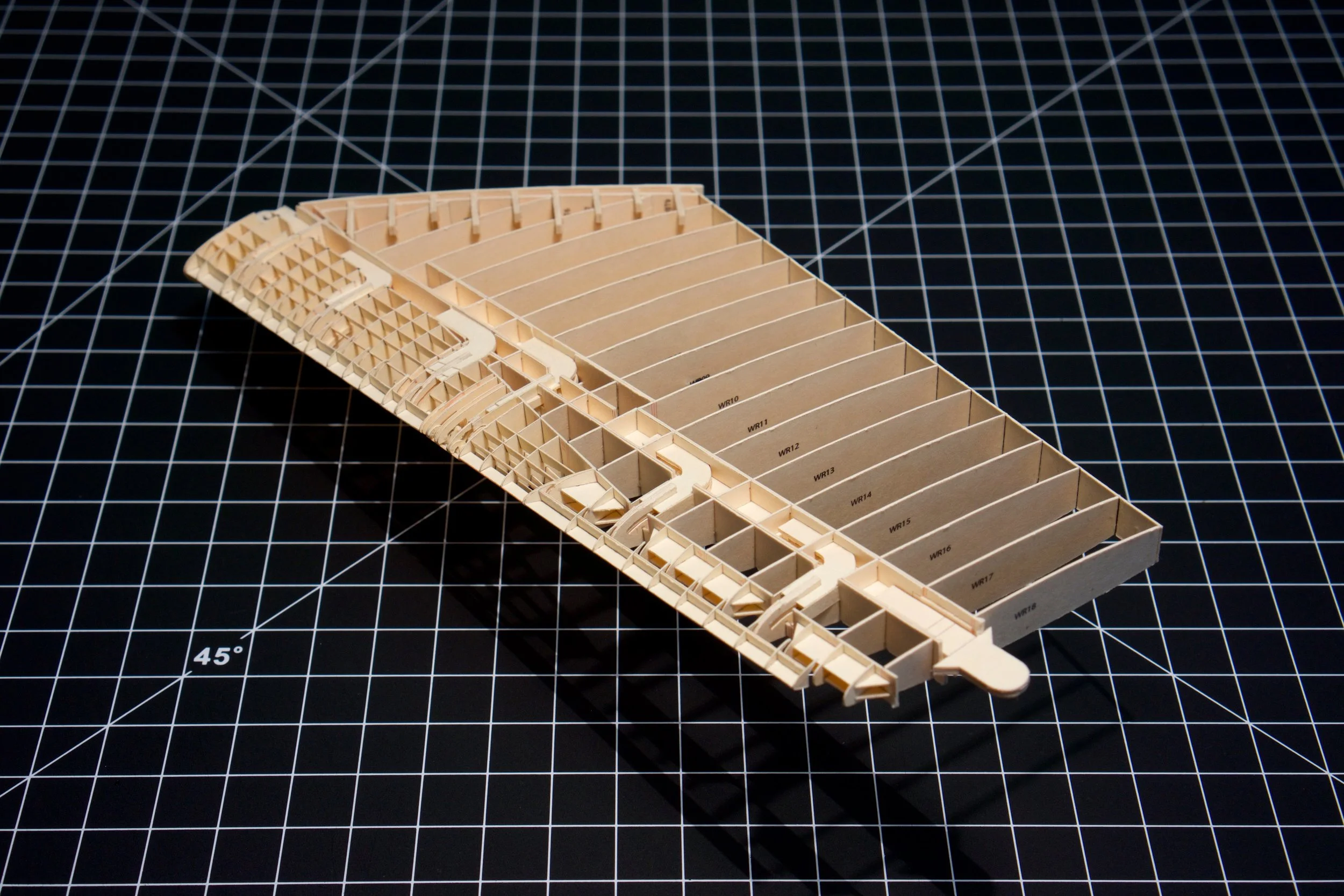

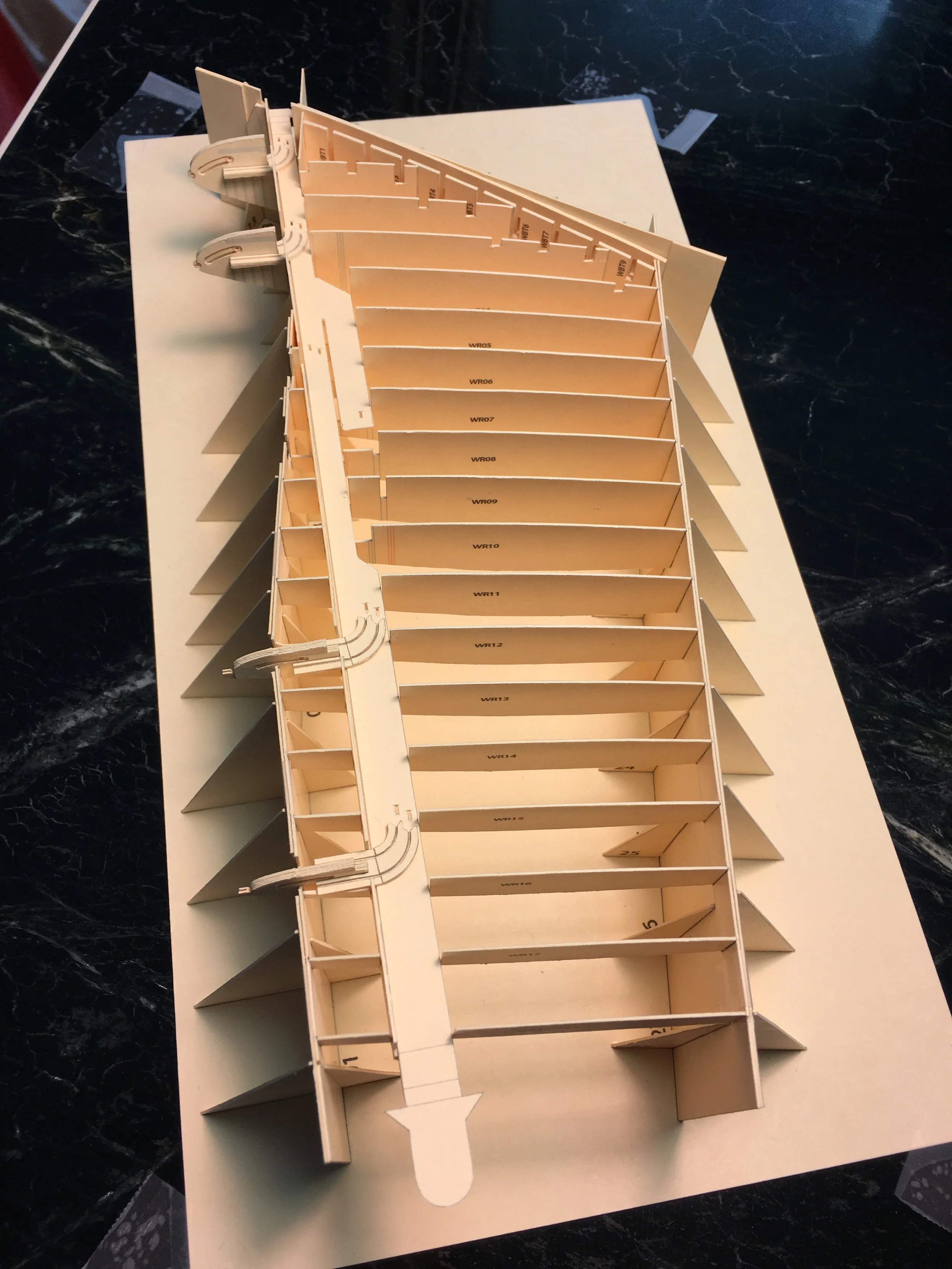

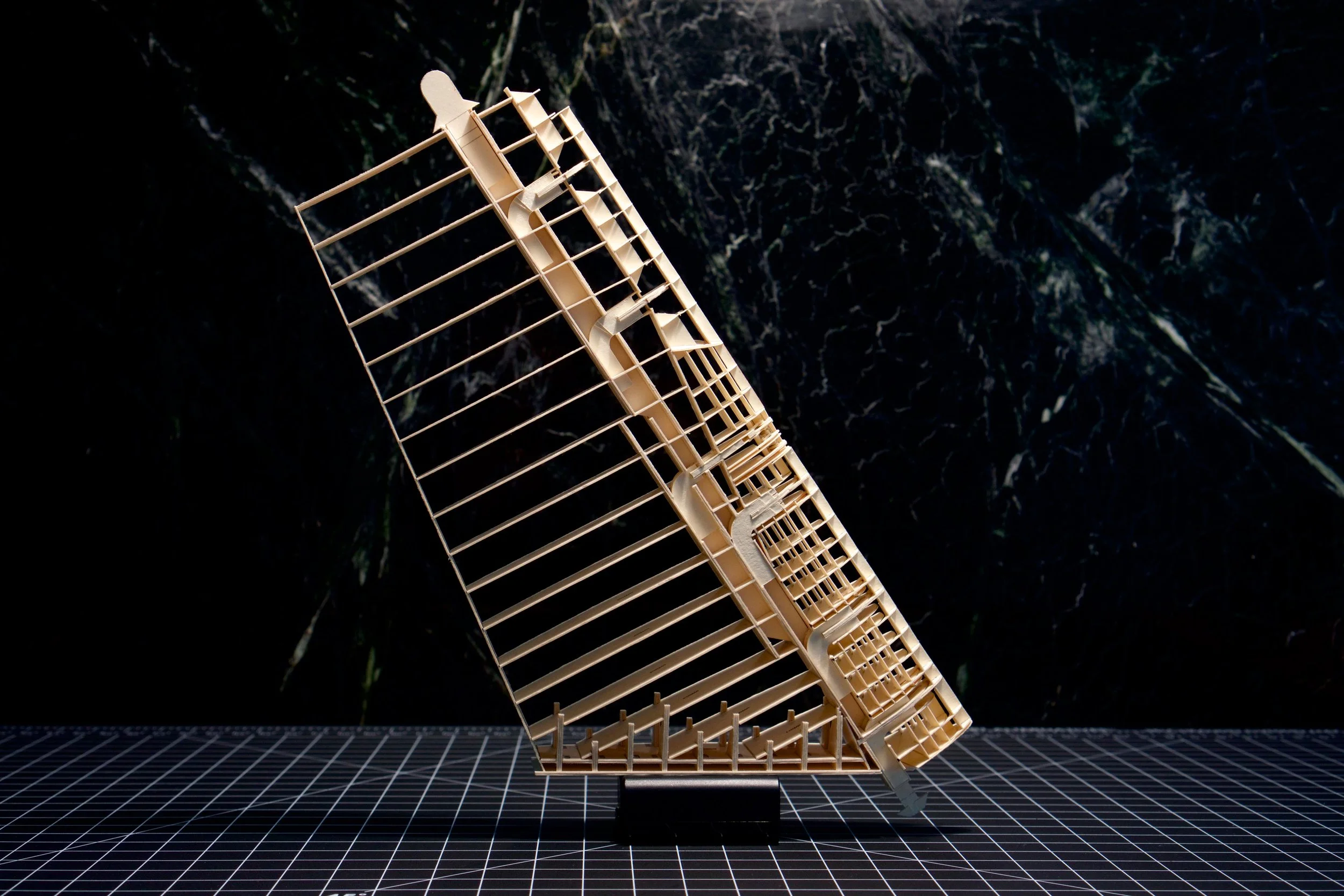

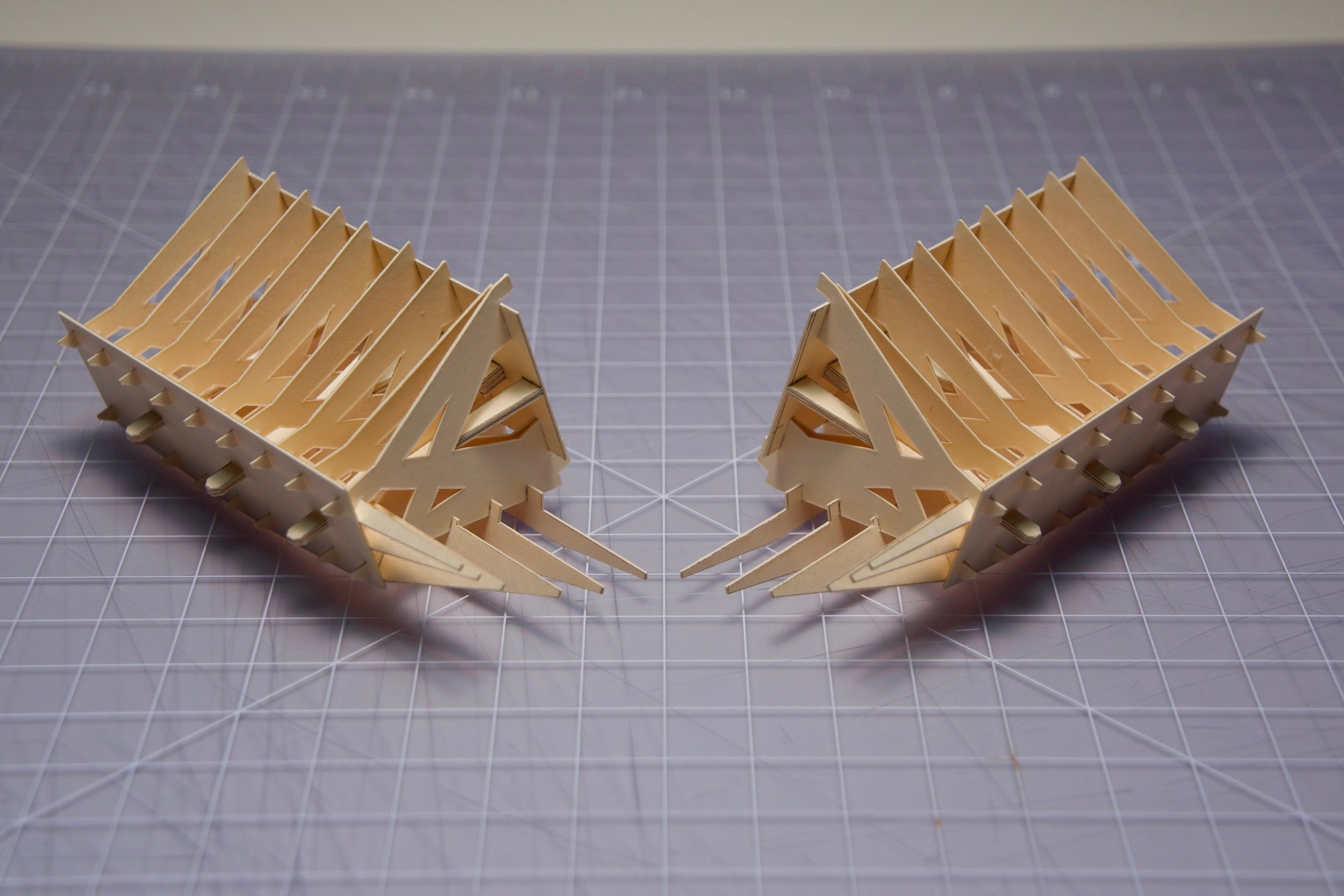

Pieces for the wingbox, which will be glued onto the fuselage and mate with the root of the wings

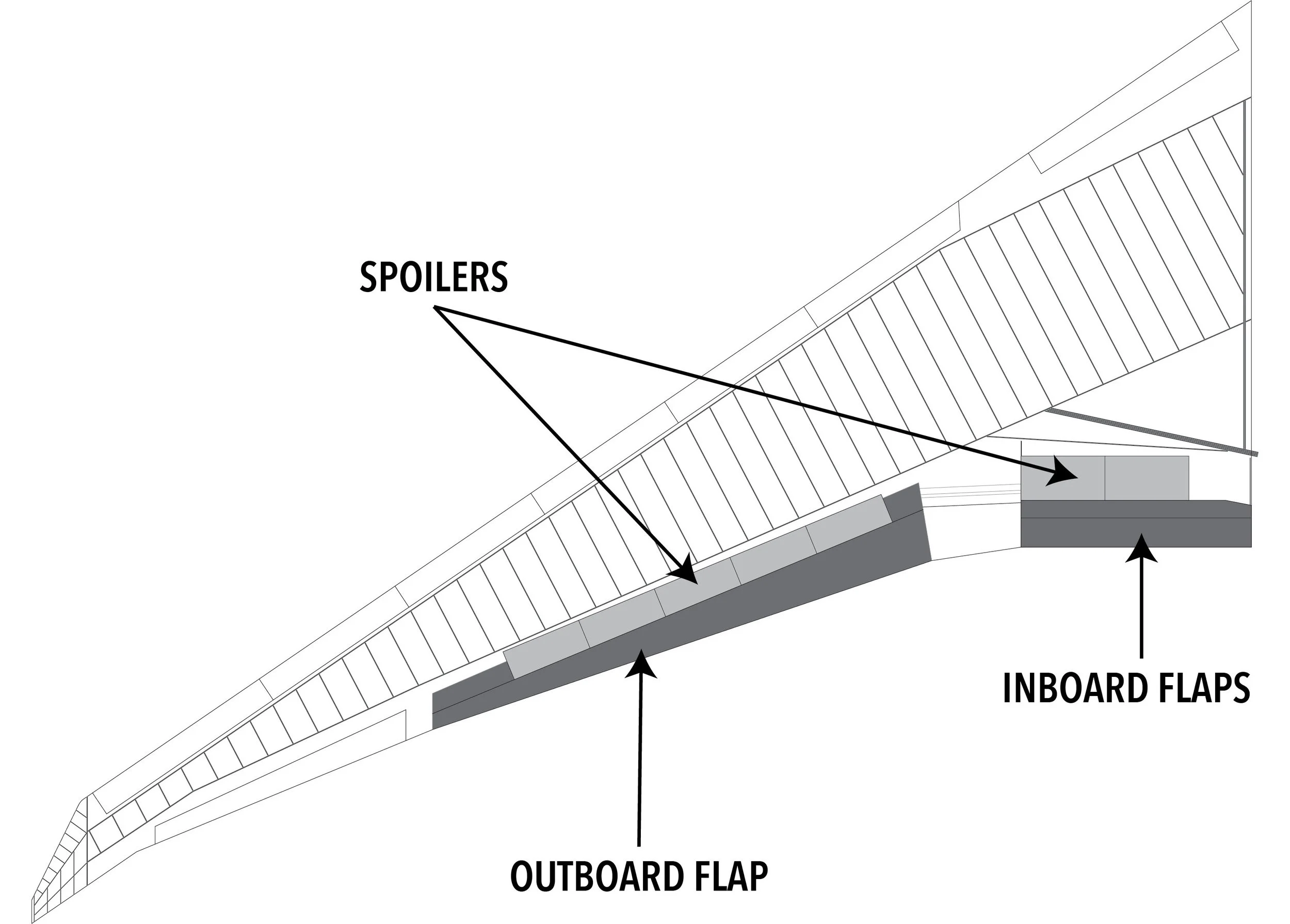

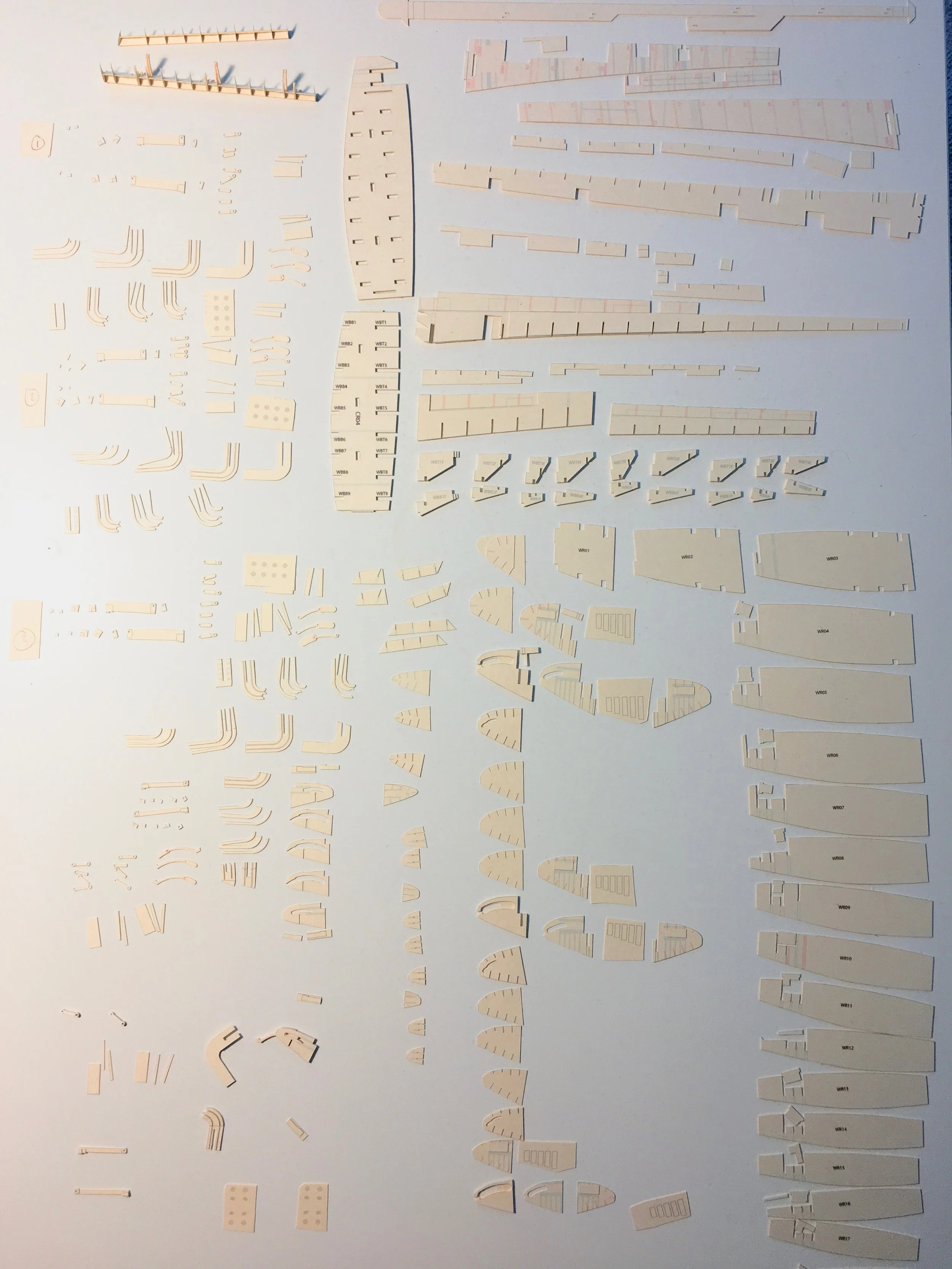

WHAT’S LEFT TO DESIGN AND BUILD?

Wings - remianing work.jpg

The inboard and outboard flaps, the spoilers, and, most importantly, the assembly strategy/process itself. Stay tuned for updates!
